Technical drawing
· /
Class Series Flanges
Class 600 Flanges — ASME B 16.47 Series A
-
Body material
Karbon çelik /
Paslanmaz çelik / Bakır nikel - DN range DN 650 - DN 1500
- NPS range NPS 26 - NPS 60
- Design standard ASME B 16.47 Serie A
- Pressure class Class 600
Documents
Product catalog page
PDF 1 page(s) 331 KB EN 01.08.2026
Dimensions

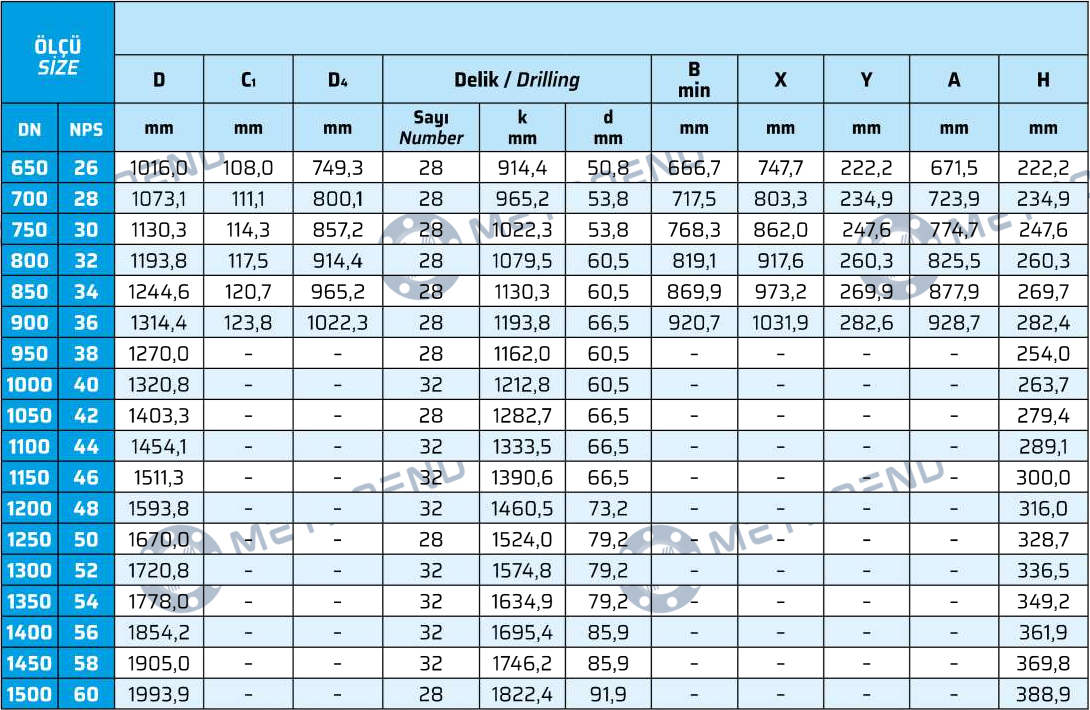

Dimension table
18 rows × 13 columns
← scroll horizontally →
| SIZE | Drilling | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | NPS | D | C₁ | D₄ | Number | k | d | B min | X | Y | A | H |
| 650 | 26 | 1016,0 | 108,0 | 749,3 | 28 | 914,4 | 50,8 | 666,7 | 747,7 | 222,2 | 671,5 | 222,2 |
| 700 | 28 | 1073,1 | 111,1 | 800,1 | 28 | 965,2 | 53,8 | 717,5 | 803,3 | 234,9 | 723,9 | 234,9 |
| 750 | 30 | 1130,3 | 114,3 | 857,2 | 28 | 1022,3 | 53,8 | 768,3 | 862,0 | 247,6 | 774,7 | 247,6 |
| 800 | 32 | 1193,8 | 117,5 | 914,4 | 28 | 1079,5 | 60,5 | 819,1 | 917,6 | 260,3 | 825,5 | 260,3 |
| 850 | 34 | 1244,6 | 120,7 | 965,2 | 28 | 1130,3 | 60,5 | 869,9 | 973,2 | 269,9 | 877,9 | 269,7 |
| 900 | 36 | 1314,4 | 123,8 | 1022,3 | 28 | 1193,8 | 66,5 | 920,7 | 1031,9 | 282,6 | 928,7 | 282,4 |
| 950 | 38 | 1270,0 | - | - | 28 | 1162,0 | 60,5 | - | - | - | - | 254,0 |
| 1000 | 40 | 1320,8 | - | - | 32 | 1212,8 | 60,5 | - | - | - | - | 263,7 |
| 1050 | 42 | 1403,3 | - | - | 28 | 1282,7 | 66,5 | - | - | - | - | 279,4 |
| 1100 | 44 | 1454,1 | - | - | 32 | 1333,5 | 66,5 | - | - | - | - | 289,1 |
| 1150 | 46 | 1511,3 | - | - | 32 | 1390,6 | 66,5 | - | - | - | - | 300,0 |
| 1200 | 48 | 1593,8 | - | - | 32 | 1460,5 | 73,2 | - | - | - | - | 316,0 |
| 1250 | 50 | 1670,0 | - | - | 28 | 1524,0 | 79,2 | - | - | - | - | 328,7 |
| 1300 | 52 | 1720,8 | - | - | 32 | 1574,8 | 79,2 | - | - | - | - | 336,5 |
| 1350 | 54 | 1778,0 | - | - | 32 | 1634,9 | 79,2 | - | - | - | - | 349,2 |
| 1400 | 56 | 1854,2 | - | - | 32 | 1695,4 | 85,9 | - | - | - | - | 361,9 |
| 1450 | 58 | 1905,0 | - | - | 32 | 1746,2 | 85,9 | - | - | - | - | 369,8 |
| 1500 | 60 | 1993,9 | - | - | 28 | 1822,4 | 91,9 | - | - | - | - | 388,9 |
