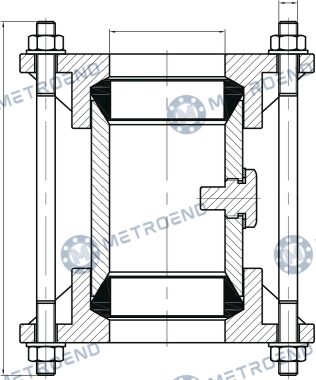

Technical drawing
· /
Marine Equipment
Pipe Coupling
Documents
Technical Datasheet
PDF 1 page(s) 266 KB EN 01.08.2026
What it does

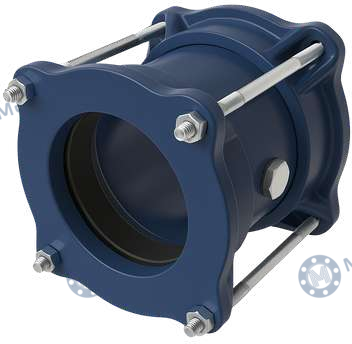

Pipe Coupling
Pipe Coupling is part of the Marine Equipment group. Listed in 13 sizes from DN50 to DN500 in our catalogue. Body material: GGG40.
About Marine Equipment
Marine equipment covers the fittings used in the fuel, bilge, ballast, cooling and fire-fighting circuits of vessels and shore facilities. Saltwater corrosion, continuous vibration and limited maintenance opportunity are decisive for these products, and the material and sealing selection is made accordingly. In applications requiring classification society approval, the product must be supplied together with the relevant certificate.
Where it is used
Application areas
- 01 Maritime Applications
- 02 Ballast System
- 03 Fire System
- 04 Electrical Wiring System
Dimensions
Dimension table
13 rows × 6 columns
← scroll horizontally →
| DN | PN | ØD | H | Ødxn | KG |
|---|---|---|---|---|---|
| 50 | 16 | 62 | 190 | M10x4 | 5,50 |
| 65 | 16 | 79 | 190 | M10x4 | 7,50 |
| 80 | 16 | 91 | 190 | M10x4 | 7,90 |
| 100 | 16 | 117 | 190 | M10x4 | 9,00 |
| 125 | 16 | 144 | 190 | M10x6 | 12,00 |
| 150 | 16 | 171 | 210 | M12x6 | 15,00 |
| 200 | 16 | 222 | 210 | M12x8 | 20,00 |
| 250 | 16 | 276 | 220 | M14x8 | 27,00 |
| 300 | 16 | 327 | 240 | M14x10 | 32,00 |
| 350 | 6 | 360 | 290 | M16x10 | 45,00 |
| 400 | 6 | 411 | 300 | M18x10 | - |
| 450 | 6 | 461 | 300 | M18x10 | - |
| 500 | 6 | 515 | 300 | M18x10 | - |
Material
Material specifications
| No | Part name (TR) | Part name (EN) | Material |
|---|---|---|---|
| 1 | GÖVDE | BODY | GGG40 |
| 2 | BORU | PIPE | ST42 |
| 3 | PUL | WASHER | COPPER |
| 4 | TAPA | PLUG | AISI316 |
| 5 | CONTA | GASKET | NBR |
| 6 | SAPLAMA | STUD | 6.8 STEEL |
| 7 | SOMUN & PUL | NUT & WASHER | 5.2 STEEL |
