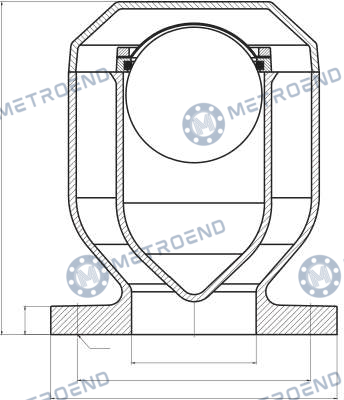

Technical drawing
· /
Marine Equipment
Air Vent Pipe Head
Documents
Technical Datasheet
PDF 1 page(s) 294 KB EN 01.08.2026
What it does
Air Vent Pipe Head
Air Vent Pipe Head is part of the Marine Equipment group. Listed in 11 sizes from DN50 to DN400 in our catalogue. Body material: GG25.
About Marine Equipment
Marine equipment covers the fittings used in the fuel, bilge, ballast, cooling and fire-fighting circuits of vessels and shore facilities. Saltwater corrosion, continuous vibration and limited maintenance opportunity are decisive for these products, and the material and sealing selection is made accordingly. In applications requiring classification society approval, the product must be supplied together with the relevant certificate.
Where it is used
Application areas
- 01 Maritime Applications
- 02 Oil Tanks
- 03 Fuel Tanks
- 04 Ballast Tanks
- 05 Fresh and Waste Water Tanks
Dimensions
Dimension table
11 rows × 15 columns
← scroll horizontally →
| DN | ØD | b | H | PN6 Øk | PN6 Ødxn | PN6 Øk | PN10 Ødxn | PN10 Øk | PN16 Ødxn | PN16 Øk | 5K Ødxn | Øk | 10K Ødxn | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 165 | 20 | 60 | 110 | 14x4 | 125 | 18x4 | 125 | 18x4 | 105 | 15x4 | 120 | 19x4 | 6 |
| 65 | 185 | 20 | 15 | 130 | 14x4 | 145 | 18x4 | 145 | 18x4 | 130 | 15x4 | 140 | 19x4 | 8 |
| 80 | 200 | 20 | 218 | 150 | 18x4 | 160 | 18x8 | 160 | 18x8 | 145 | 19x4 | 150 | 19x8 | 10 |
| 100 | 220 | 22 | 260 | 170 | 18x4 | 180 | 18x8 | 180 | 18x8 | 165 | 19x8 | 175 | 19x8 | 14 |
| 125 | 250 | 22 | 305 | 200 | 18x8 | 210 | 18x8 | 210 | 18x8 | 200 | 19x8 | 210 | 19x8 | 20 |
| 150 | 285 | 24 | 365 | 225 | 18x8 | 240 | 22x8 | 240 | 22x8 | 230 | 19x8 | 240 | 23x8 | 28 |
| 200 | 340 | 26 | 460 | 280 | 18x8 | 295 | 22x8 | 295 | 22x12 | 280 | 23x8 | 290 | 23x12 | 48 |
| 250 | 405 | 28 | 570 | 335 | 18x12 | 350 | 22x12 | 355 | 26x12 | 345 | 23x12 | 355 | 25x12 | 78 |
| 300 | 460 | 28 | 730 | 395 | 22x12 | 400 | 22x12 | 410 | 26x12 | 390 | 23x12 | 400 | 25x16 | 143 |
| 350 | 520 | 30 | 815 | 445 | 22x12 | 460 | 22x16 | 470 | 26x12 | 435 | 25x12 | 445 | 25x16 | 195 |
| 400 | 580 | 32 | 846 | 495 | 22x16 | 515 | 22x16 | 525 | 30x16 | 495 | 25x16 | 510 | 27x16 | 224 |
Material
Material specifications
| No | Part name (TR) | Part name (EN) | Material |
|---|---|---|---|
| 1 | GÖVDE | BODY | GG25 / |
| 2 | TOP | BALL | P.E. |
| 3 | O-RING FLANŞI | O-RING FLANGE | RG5 |
| 4 | O-RING | O-RING | NBR |
| 5 | TEL | STRAINER | AISI316 |
| 6 | TEL BASKI FLANŞI | STRAINER FLANGE | RG5 |
| 7 | CIVATA | BOLT | AISI316 |
| 8 | KAPAK | BONNET | GG25 / |
