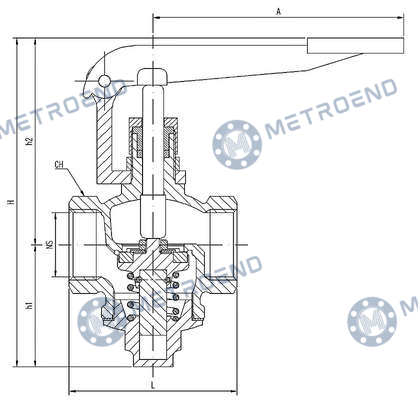

Technical drawing
· /
Drain Valves
Bronze Threaded Self Closing - Drain Valve
- Working pressure PN16
-
Working temperature
-10°C /
+120°C - Connection type DIN2999
Documents
Technical Datasheet
PDF 1 page(s) 247 KB EN 01.08.2026
What it does
Bronze Threaded Self Closing - Drain Valve
Bronze Threaded Self Closing - Drain Valve is part of the Drain Valves group. Connection standard: DIN2999. Rated for PN16. Working temperature range -10°C / +120°C. Listed in 6 sizes from DN15 to DN50 in our catalogue. Body material: RG5.
About Drain Valves
A drain valve is used to remove water, sediment and sludge that collect at the bottom of tanks, boilers and pipelines. Because solid particles carried along during draining can erode the sealing face, the closing surface and body geometry of these valves are selected to withstand sediment. Self-closing models prevent the valve from being left open when draining is finished.
Where it is used
Application areas
- 01 Maritime Applications
- 02 Water - Wastewater
Dimensions
Dimension table
6 rows × 7 columns
← scroll horizontally →
| DN | h1 | h2 | H | A | L | KG |
|---|---|---|---|---|---|---|
| 15 | 48 | 140 | 188 | 130 | 60 | 0,8 |
| 20 | 51 | 131 | 182 | 130 | 70 | 1 |
| 25 | 58 | 144 | 202 | 130 | 80 | 1,2 |
| 32 | 64 | 132 | 196 | 160 | 96 | 2,2 |
| 40 | 72 | 133 | 205 | 160 | 104 | 2,8 |
| 50 | 67 | 144 | 211 | 160 | 130 | 4,5 |
Material
Material specifications
| No | Part name (TR) | Part name (EN) | Material |
|---|---|---|---|
| 1 | GÖVDE | BODY | RG5 |
| 2 | KOL | LEVER | RG5 |
| 3 | MİL | STEM | BRASS |
| 4 | SİT | SEAT | PTFE |
| 5 | YAY | SPRING | STEEL |
