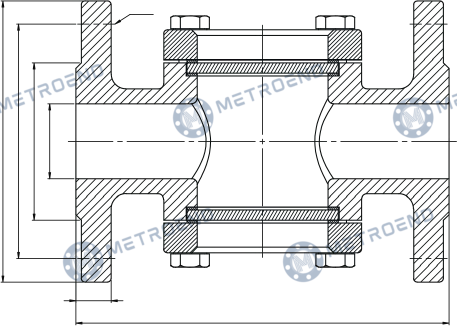

Technical drawing
· /
Sight Glasses
Flanged Sight Glass
Documents
Technical Datasheet
PDF 1 page(s) 294 KB EN 01.08.2026
What it does
Flanged Sight Glass
Flanged Sight Glass is part of the Sight Glasses group. Listed in 13 sizes from DN15 to DN250 in our catalogue. Body material: GG25 / AISI304 / AISI316.
About Sight Glasses
A sight glass is a fitting that allows the presence, direction and general condition of the fluid in a pipeline to be observed visually through a glass window. It is not a measuring instrument and does not indicate flow rate. It is used to confirm whether a pump is delivering, whether the line has been vented, changes in the colour and clarity of the fluid, and condensate return. In flapper (paddle) models a rotating element makes the flow visible even at low rates.
Where it is used
Application areas
- 01 Power Plants
- 02 Chemical - Petrochemical
- 03 Maritime Applications
- 04 Heating - Cooling Systems
- 05 Food
- 06 Mining Applications
- 07 Water - Wastewater
Dimensions
Dimension table
13 rows × 8 columns
← scroll horizontally →
| DN | ØD | Øk | Øg | L | b | Ødxn | KG |
|---|---|---|---|---|---|---|---|
| 15 | 95 | 65 | 46 | 130 | 14 | 14x1 | 2,80 |
| 20 | 105 | 75 | 56 | 150 | 16 | 14x4 | 3,50 |
| 25 | 115 | 85 | 65 | 160 | 16 | 14x4 | 4,30 |
| 32 | 140 | 100 | 76 | 180 | 18 | 18x4 | 6,70 |
| 40 | 150 | 110 | 84 | 200 | 18 | 18x4 | 7,20 |
| 50 | 165 | 125 | 99 | 230 | 20 | 18x4 | 11,50 |
| 65 | 185 | 145 | 118 | 290 | 20 | 18x4 | 17,80 |
| 80 | 200 | 160 | 132 | 310 | 22 | 18x8 | 21,00 |
| 100 | 220 | 180 | 156 | 350 | 24 | 18x8 | 31,20 |
| 125 | 250 | 210 | 184 | 400 | 26 | 18x8 | 39,00 |
| 150 | 285 | 240 | 211 | 480 | 26 | 22x8 | 55,80 |
| 200 | 340 | 295 | 266 | 600 | 30 | 22x12 | 89,00 |
| 250 | 405 | 355 | 319 | 730 | 32 | 26x12 | 98,00 |
Material
Material specifications
| No | Part name (TR) | Part name (EN) | Material |
|---|---|---|---|
| 1 | GÖVDE | BODY | GG25 / AISI304 / AISI316 |
| 2 | KAPAK | COVER | GG25 / AISI304 / AISI316 |
| 3 | CAM | GLASS | SEKURITE |
| 4 | GÖVDE CONTA | BODY SEAL | PTFE |
| 5 | CIVATA | BOLT | 5.6. |
